One Grapple Truck - Multiple Containers - No Trailer.

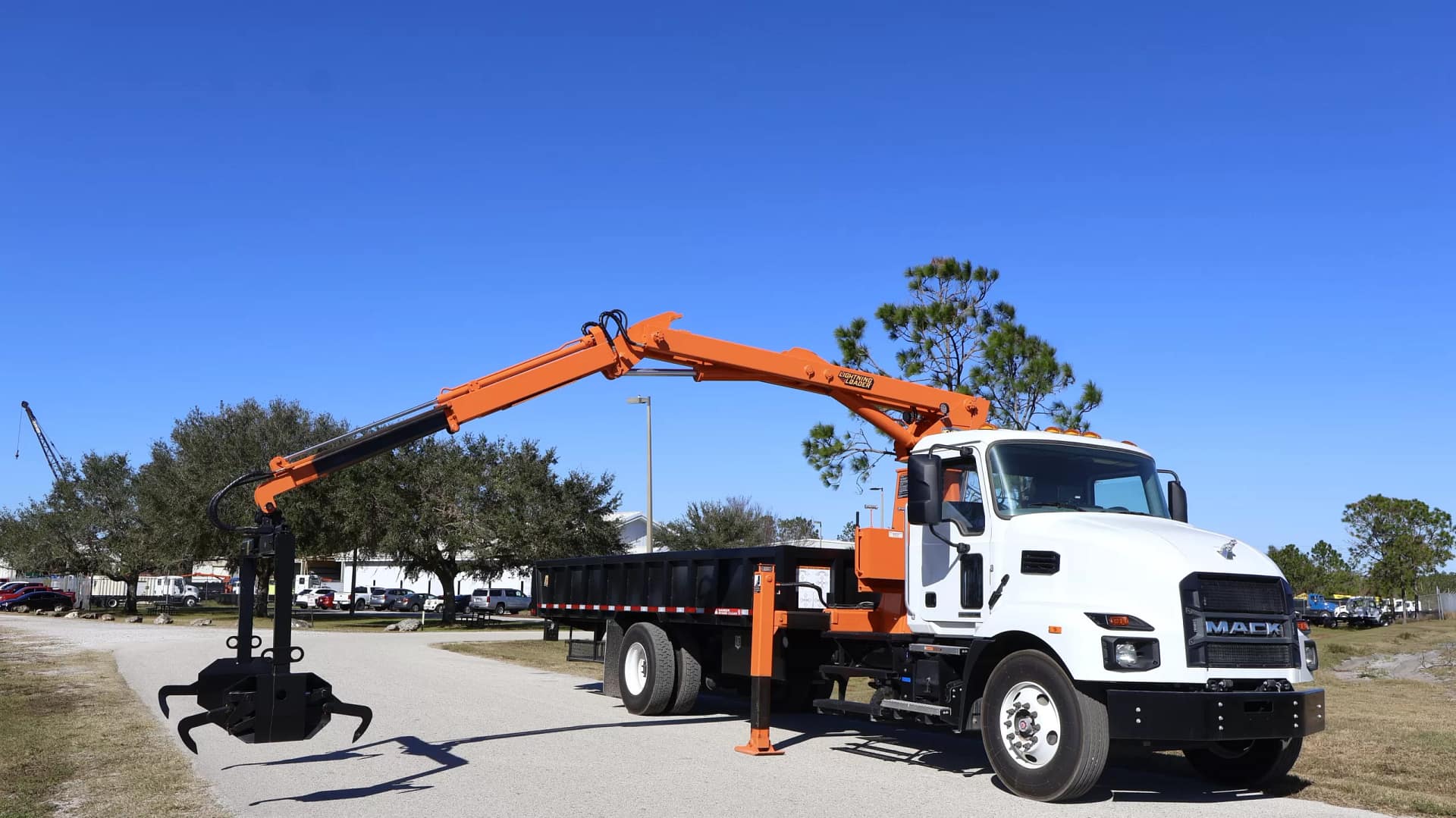

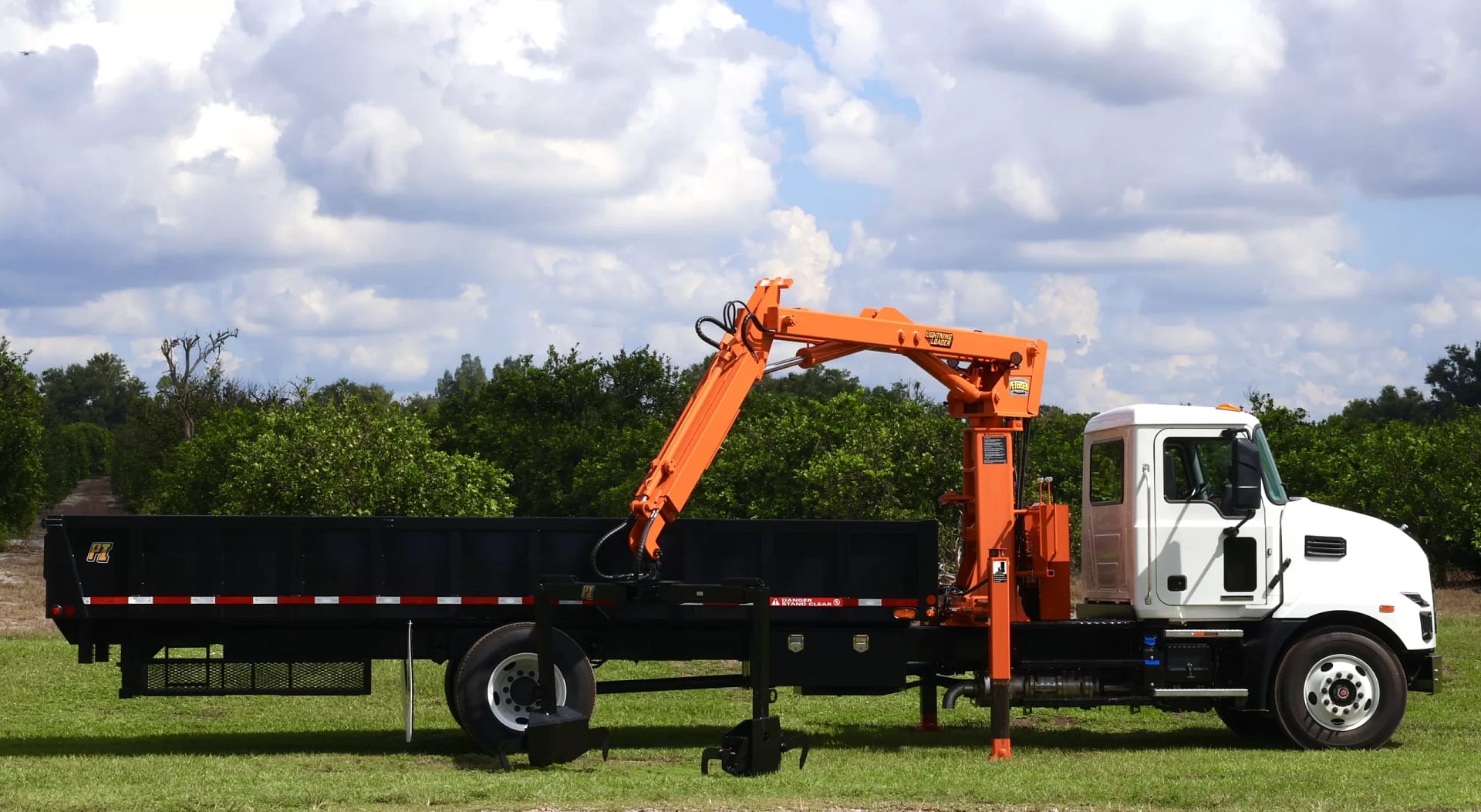

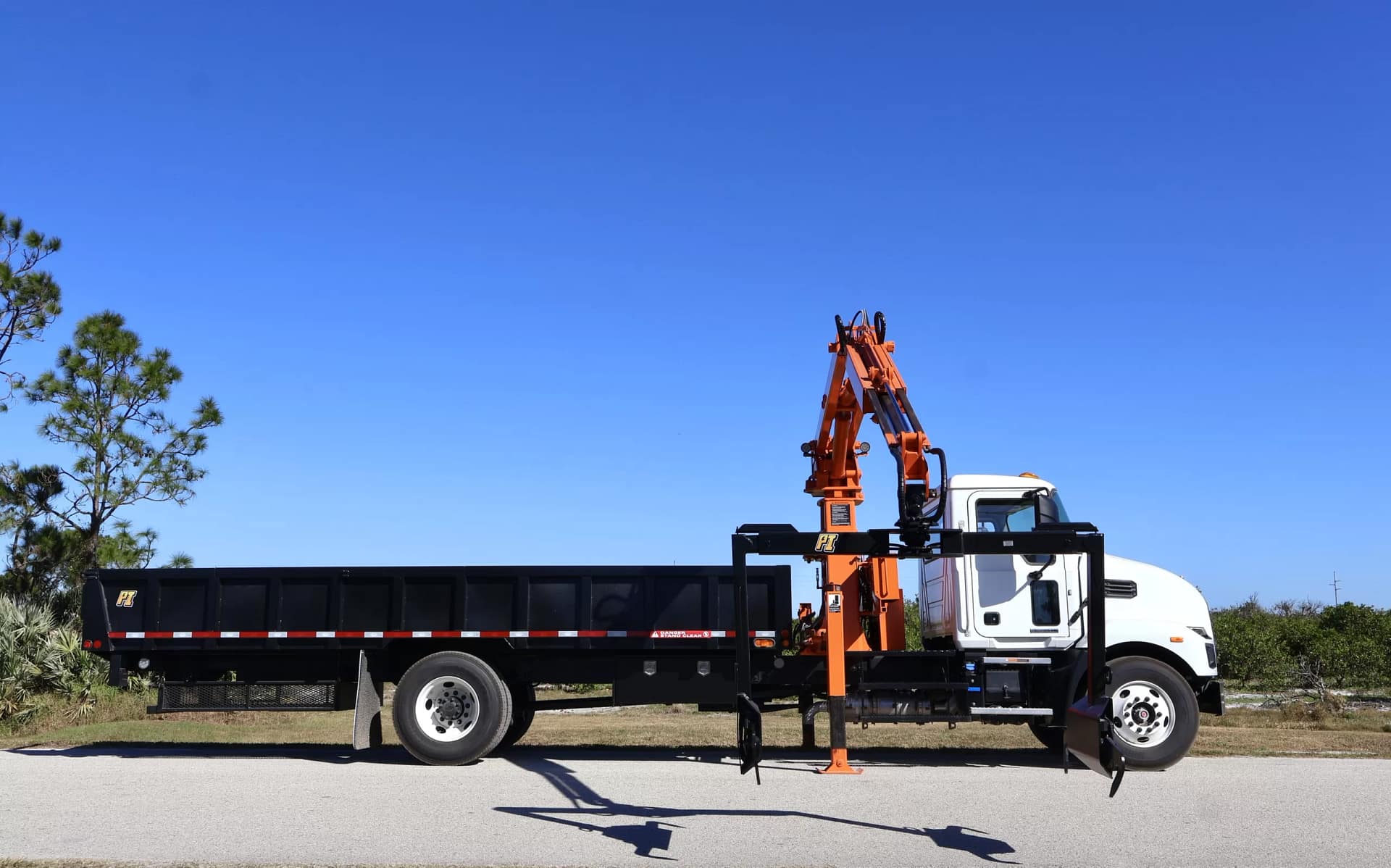

Container Transport using the CP3 Lightning Loader® Introducing the CP3 container transport Lightning Loader®. This model was designed to make your container pick-up and deliveries more efficient, saving time and fuel. It can carry three large containers at once or many smaller ones. The CP3 container lifts and hauls containers, letting you get the job done quicker with no trailer required. The operator is able to minimize the headache and downtime that comes with hooking up, loading, hauling, and backing a trailer.

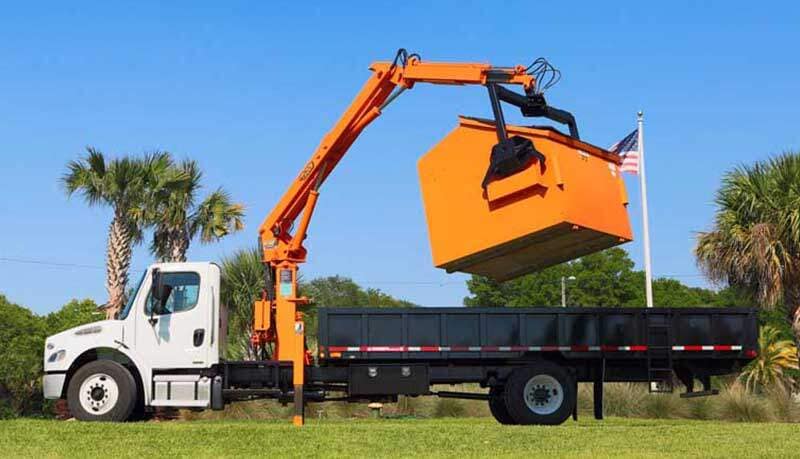

The CP3 unit works with our grapple arm by utilizing our patented crab container lifting attachment engineered to automatically lock onto ANSI compliant commercial front load containers. The arm extends out and latches itself onto the containers. The arm then swings the container over and places it on the back of the truck. If there is more than one container, you will repeat the process as money times as necessary to get all of the containers onto the body. The body features low sides for easy loading.
Don't waste your money, one CP3 unit could take the place of three rear fork container delivery trucks. This switch could provide your company with 1/3 the costs of payroll, capital, fuel, and insurance expenses; ultimately saving your company $75,000 a year! The CP3 can also be used for debris pick-up by simply switching out the CRAB ATTACHMENT® for our standard grapple bucket; making it a multi-purpose unit within your fleet.
Watch the video below of our company President, Casey Hardee, operating our CP3 demo unit on route with Waste Pro.
Petersen Industries CP3 Container Transport Advantages
Safer, Simpler Operation
No straps or manhandling required – the operator stays off the ground.
Efficient Operation
With no trailer, jobs get done quicker.
Less Maintenance
Fewer moving parts and industry leading quality mean less downtime.
Reduce Windshield Time
High capacity body carries multiple containers.
QUADSTICK® JOYSTICK CONTROLS
QUADSTICK® mechanically linked dual joystick controls with “Sure-Grip” safety interlock are the standard on the CP3 unit.
STANDARD SWING LOCK
Standard swing lock to prevent boom movement over the containers or sides of the body.
EXTENDED PEDESTAL
Extended pedestal for better can clearance.
FULL CAPACITY
22’ body that can carry up to three 8-yard containers.
AUTOMATIC GRABBER
Automatic grabber for commercial front load containers; lifting rings and chains standard for special lifting.
LOWEST CLEARANCE
Non-dumping body for lowest clearance and easy on and off loading.
KNUCKLE BOOM TRUCK GENERAL SPECIFICATIONS
Reach: 20 ft. 7 in.
Main Boom & Tip Boom: 16 ft. 7 in.
Tip Extension: 4 ft.
Outrigger Span: 11 ft. 8 in.
KNUCKLE BOOM LOADER RECOMMENDED CHASSIS (MINIMUM)
Body Style: Conventional Cab
Clear Space: Cab to Roll-off Hoist: 64 inches
GVW Rating: 54,000 lbs. (tandem)
Frame: 1,500,000 RBM
